TMP4210 TELESIS – PINSTAMP SINGLE PIN MARKING SYSTEMS

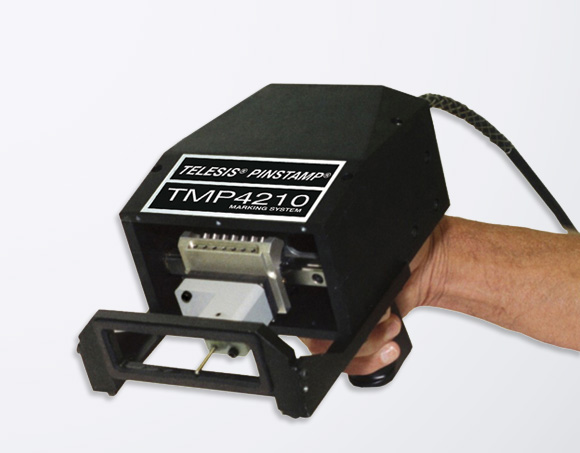

TMP4210 Pinstamp Single Pin Marking System
Il TMP4210 è un marcatore a punta singola estremamente leggero e manuale che soddisfa un’ampia gamma di marcature portatili. Disponibile anche nella versione TMM4215 a due punte. Possiede un’area di marcatura di 100 mm x 13 mm.
SPECIFICATIONS TMP4210 Pinstamp Marking
| Simple, easy to use single pin design |
| Compact and ergonomic; weighs about 2.0kg (4.4 pounds) |
| Available with 25S or 150SA marking pin |
| 2˝ x 0.5˝ (50mm x 13mm) marking window |
| Economically priced |
| Marks 1/8” (3mm) tall characters at up to 3.5 characters-per-second |
| Utilizes same rugged rack-and-pinion X/Y platform as field-proven TMM4200 |
| Detachable electronics cable for improved serviceability |
| Self-contained state-of-the-art TMC470 controller features two serial ports, USB and Ethernet ports |
| Also available without handle and stand-off for fixtured applications |
Visualizza la SCHEDA TMP4210 Pinstamp Marking Telesis

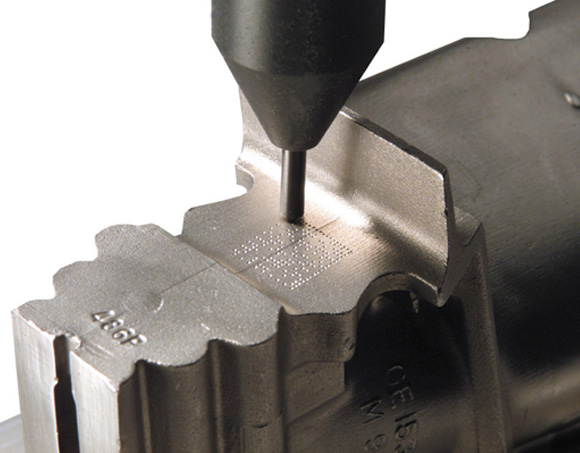

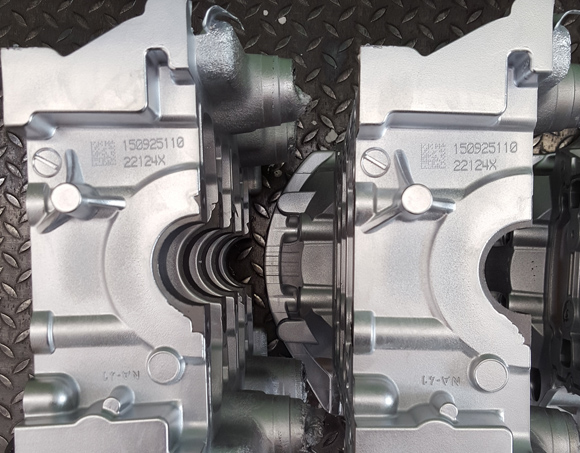

Esempi di Stampa
-

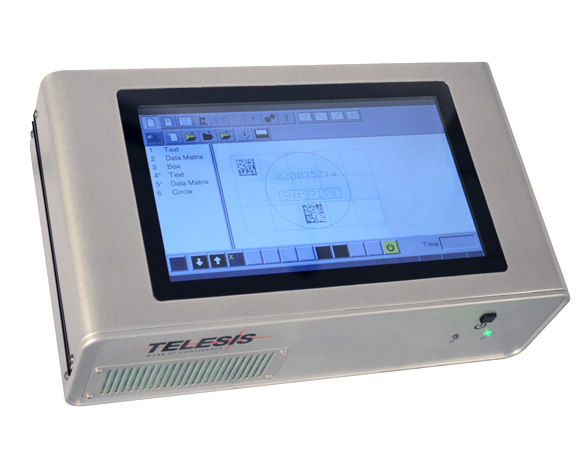

- Controller TMC600
