TMM4250 TELESIS – PINSTAMP MULTIPLE PIN MARKING SYSTEMS

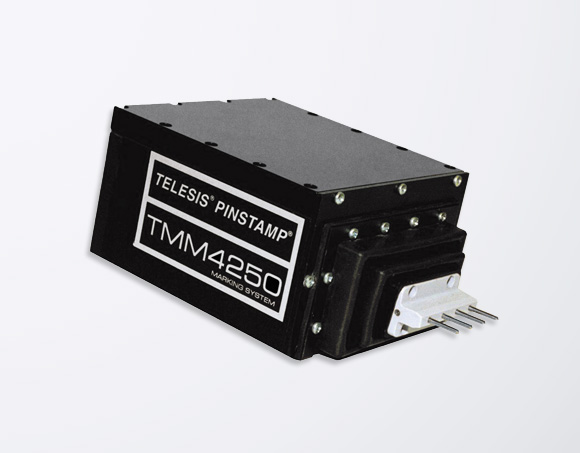

TMM4250 Pinstamp Multiple Pin Marking System
La testa di marcatura del TMM4250 ha un’area di marcatura di 13mm x 50mm e 4 punte. Può marcare fino ad 8 caratteri al secondo. L’elevata protezione IP55 permette l’installazione e la durata nel tempo anche in ambienti contaminati da solidi o liquidi. Può essere integrata facilmente grazie alle sue dimensioni contenute.
SPECIFICATIONS TMM4250 Pinstamp Marking
| NEMA 12-Rated (IP55) with rubber boot for protection against solid and liquid Contaminants |
| Extremely compact for ease of integration |
| Available with four 25S or two 150SA marking pins |
| Marks up to eight 0.125˝ (3mm) high characters-per-second |
| Self-contained, state-of-the-art TMC470 controller features two serial ports, USB and Ethernet ports |
| Stores up to 200 marking patterns |
| Marking windows up to 0.5˝ x 2˝ (13mm x 50mm) |
| Depths up to 0.013˝ (0.33 mm) in mild steel |
| Rugged rack-and-pinion X/Y platform for low maintenance operation |
| Detachable electronics cable for improved serviceability |
| RS232 or TCP/IP Host interface to download text to individual fields or call up entire patterns |
| Automatically generates serial numbers, date, time and shift codes |
| Easily interfaced to PLCs (Programmable Logic Controllers) and Host Computers |
Visualizza la SCHEDA TMM4250 Pinstamp Marking Telesis
