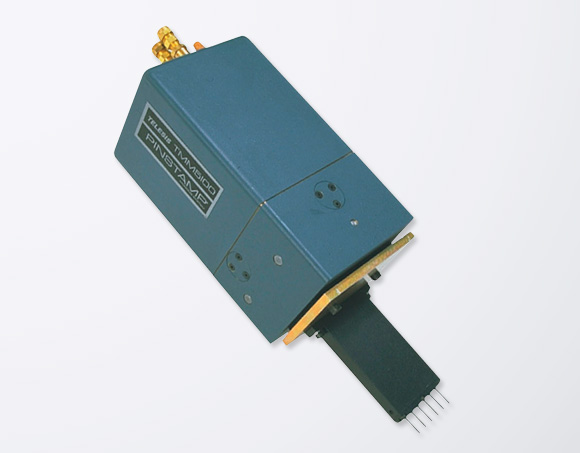

TMM5100 Pinstamp Multiple Pin Marking System
Il Pinstamp ® TMM5100 è la soluzione migliore per marcare fino sei caratteri al secondo. Con il suo design leggero e compatto e il suo minimo ingombro, è l’ideale sia come portatile, stand-alone, o completamente integrato, per produrre operazioni automatizzate. Offre una varietà di formati per pin. Sono disponibili configurazioni per marcare le altezze dei caratteri da .04˝ – .63˝ (1 mm – 16 mm) su una vasta gamma di materiali.
SPECIFICATIONS TMM5100 Pinstamp Marking
| High speed — up to six pins marking simultaneously |
| Marking windows up to 0.625˝ x 4.5˝ (16mm x 114mm) |

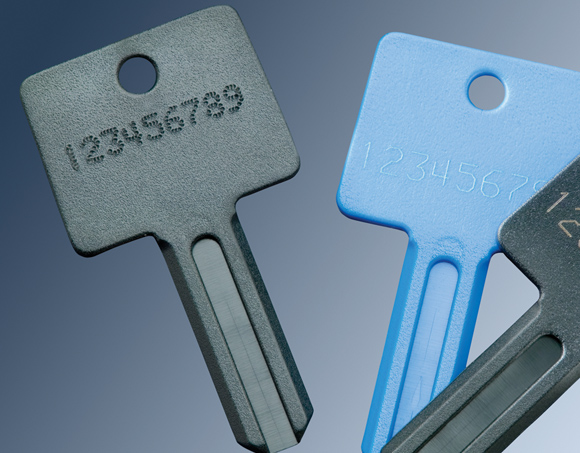

| Marks a wide range of materials from soft plastics to hardened steel — up to Rc60 |
| Available with a variety of marking pin cartridge configurations for optimal combination of character size, marking depth, marking window size and cycle time |
| Compact, rugged X/Y positioning mechanism |
| The right choice for many VIN (Vehicle Identification Number) Marking Applications |
| Self-contained, state-of-the-art TMC470 controller features two serial ports, USB and Ethernet ports |
| Automatically generates serial numbers, time, date and shift codes |
| Stores up to 200 marking patterns |
| Easily interfaced to PLCs (Programmable Logic Controllers) and Host Computers |
| Pin travel accommodates surface irregularities to 0.25˝(6mm) |
Visualizza la SCHEDA TMM5100 Pinstamp Marking Telesis
