TMM4200 TELESIS – PINSTAMP MULTIPLE PIN MARKING SYSTEMS

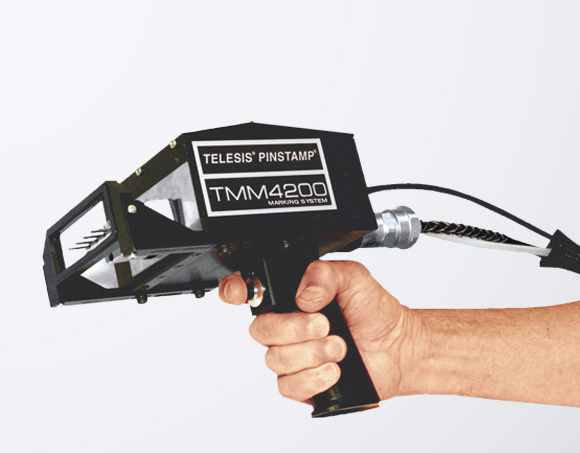

TMM4200 Pinstamp Multiple Pin Marking System
Con un’area di marcatura 13 mm x 50 mm e la struttura a punte multiple, il TMM4200 permette una marcatura rapida e di qualità in un ingombro ridotto. Molto leggera ed ergonomica, è disponibile anche nella versione integrabile senza impugnatura. La versione a punta leggera (25S) è configurata con 4 pin; quella a punta pesante (150SA) è dotata di 2 pin.
SPECIFICATIONS TMM4200 Pinstamp Marking
| Compact, ergonomic design |
| Weighs 4.5 pounds (2.0kg) |
| Available with four 25S or two 150SA marking pins |
| Marks up to eight 0.125˝ (3mm) high Characters-Per-second |
| Marking windows up to 0.5˝ x 2˝ (13mm x 50mm) |
| Depths up to 0.013˝ (0.33mm) in mild steel |
| Rugged rack-and-pinion X/Y platform for low maintenance operation |
| Simple shutter plate protects head from solid and liquid contaminants |
| Detachable electronics cable for improved serviceability |
| Self-contained, state-of-the-art TMC470 controller features two serial ports, USB and Ethernet ports |
| Also available without handle and stand-off for fixtured applications |
| Automatically generates serial numbers, date, time and shift codes |
| Stores up to 200 marking patterns |
| Easily interfaced to PLCs (Programmable Logic Controllers) and host computers |
Visualizza la SCHEDA TMM4200 Pinstamp Marking Telesis
